[v5.2.1] Additional implementation of common error code 416 in the SOL002 OpenAPI VNFLCM operations without information in the SOL002/SOL013 specification

[Actual Status] Situation with SOL002 416 Response code:

  • Is it in the SOL002 Word document? ×
  • Is it in the SOL013 Word document? ×
  • Is the content of SOL002 Word document in OpenAPI? - ※ It's not applicable as it doesn't exist in the Word document
  • Is the content of SOL013 Word document in OpenAPI? - ※ It's not applicable as it doesn't exist in the Word document
  • Other: Is the content of the 416 response in OpenAPI? 〇

[SOL002/SOL013 specification document]

In v5.2.1, The SOL013 specification document does not include a description for the common error code 416, as referenced in the SOL002 operations detailed in sections 5.4.2.3.1, 5.4.2.3.2, 5.4.3.3.2, 5.4.3.3.4, 5.4.3.3.5, 5.4.4.3.1, 5.4.5.3.1, 5.4.8.3.1, 5.4.9.3.1, 5.4.11.3.1, 5.4.14.3.1, 5.4.15.3.1, 5.4.18.3.1, 5.4.18.3.2, 5.4.19.3.2, 5.4.19.3.5

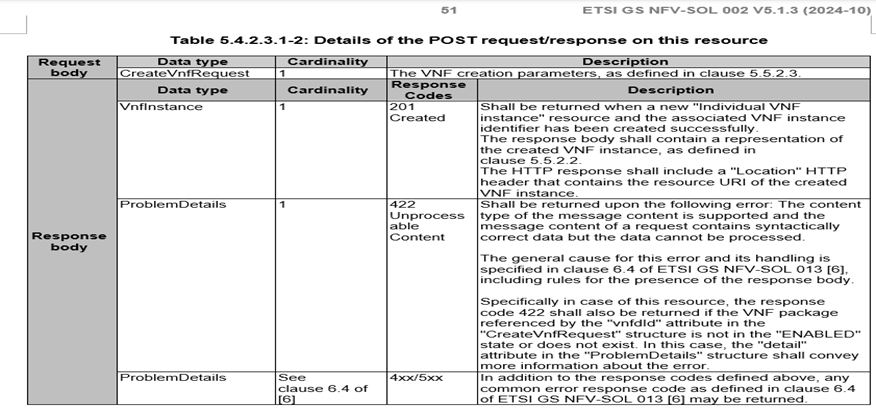

Example: 5.4.2.3.1 https://www.etsi.org/deliver/etsi_gs/NFV-SOL/001_099/002/05.02.01_60/gs_nfv-sol002v050201p.pdf image

[OpenAPI]

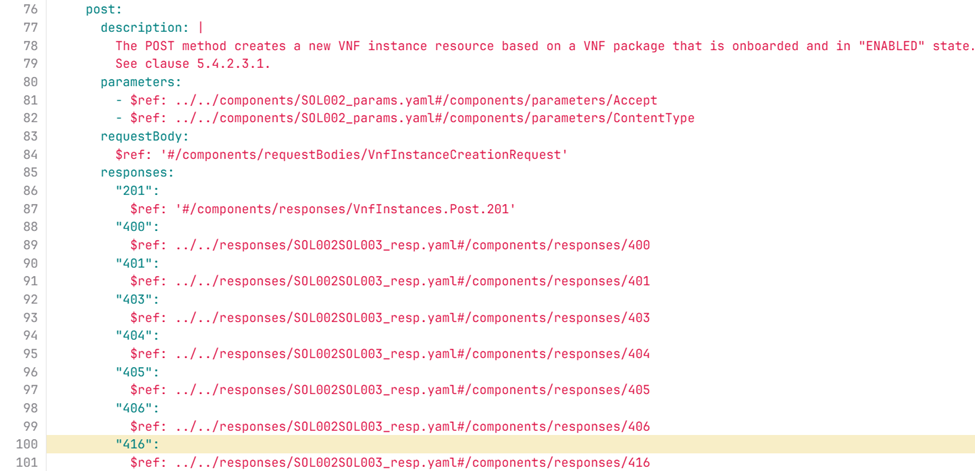

On the other hand, there is a description for common error codes 416 in the SOL002 OpenAPI VNFLCM operations for

Inconsistencies with SOL documentation.

[Problem]

The issue is that the content of the 416 response exists in OpenAPI.

[Conclusion]

Reference of common error code 416 should be removed from VNFLCM OpenAPI operation "VNFLifecycleManagement.yaml" file below operation.
